BASED ON OUR EXPERIENCE WITH LS BASED RACE ENGINES OVER THE DECADE, WE DECIDE TO COME UP WITH POTENTIALLY BEST SETUP FOR LS RACE ENGINE,
BUILD IN HOUSE AT HGKSHOP.

HGK-440 LS BASED V8 RACE ENGINE SPECS

Engine Block
RHS Standard Deck (Raised Cam) Stroker Kit 440ci
Compression Ratio 13.5:1
Estimate Power ~850HP/900Nm
Max RPM: 8000
Fuel Type: 109+ (race fuel)
Rotating Assembly
Callies Billet Crank
Custom CP Pistons
Callies Forged Connecting Rods
CAM Motion Custom Camshaft
Cylinder Head
Frankenstein F710 - Cylinder Heads
Valve Train – Hydraulic (Johnson Short Travel Lifters)
HGK Billet Valve Covers
Intake
Single Plane Intake Manifold
Accufab Four Barrel 5500 Throttle Body
KN Sprint Car Filter
8x Injectors 850cc With Fuel Lines
Nitrous Application available
Oiling System
Dailey Dry Sump 5-Stage Kit
Other Key Components
All ARP Fasteners
Cometic Head Gaskets
ATI Balancer
Cam And Crank Sensors Included
HGK LS Front Motor Plate kit
Water Relocation Kit
Bosch Power Steering Pump With Pulley
Mechman 240A Alternator With Pulley & Tensioner
OEM GM starter

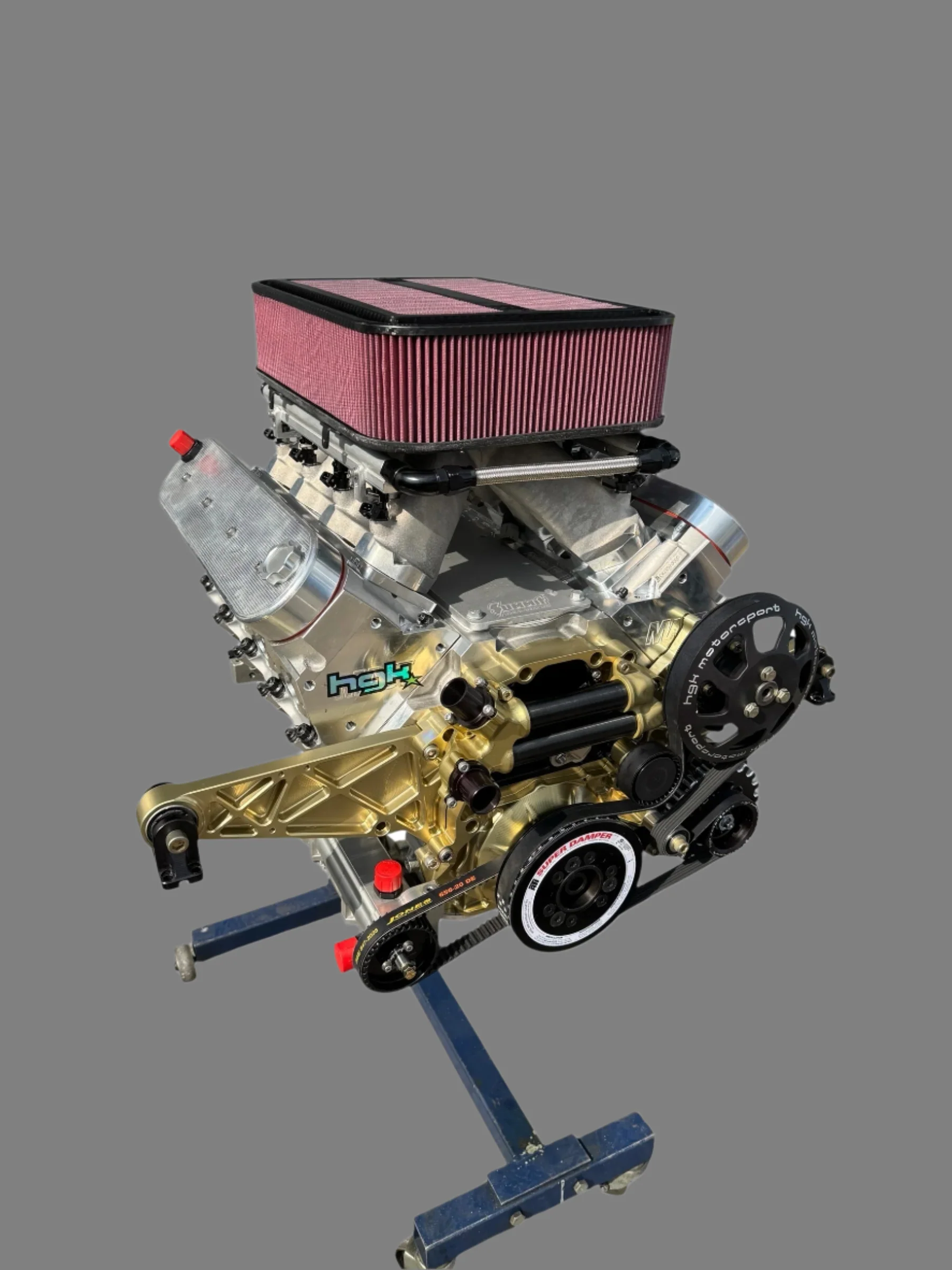

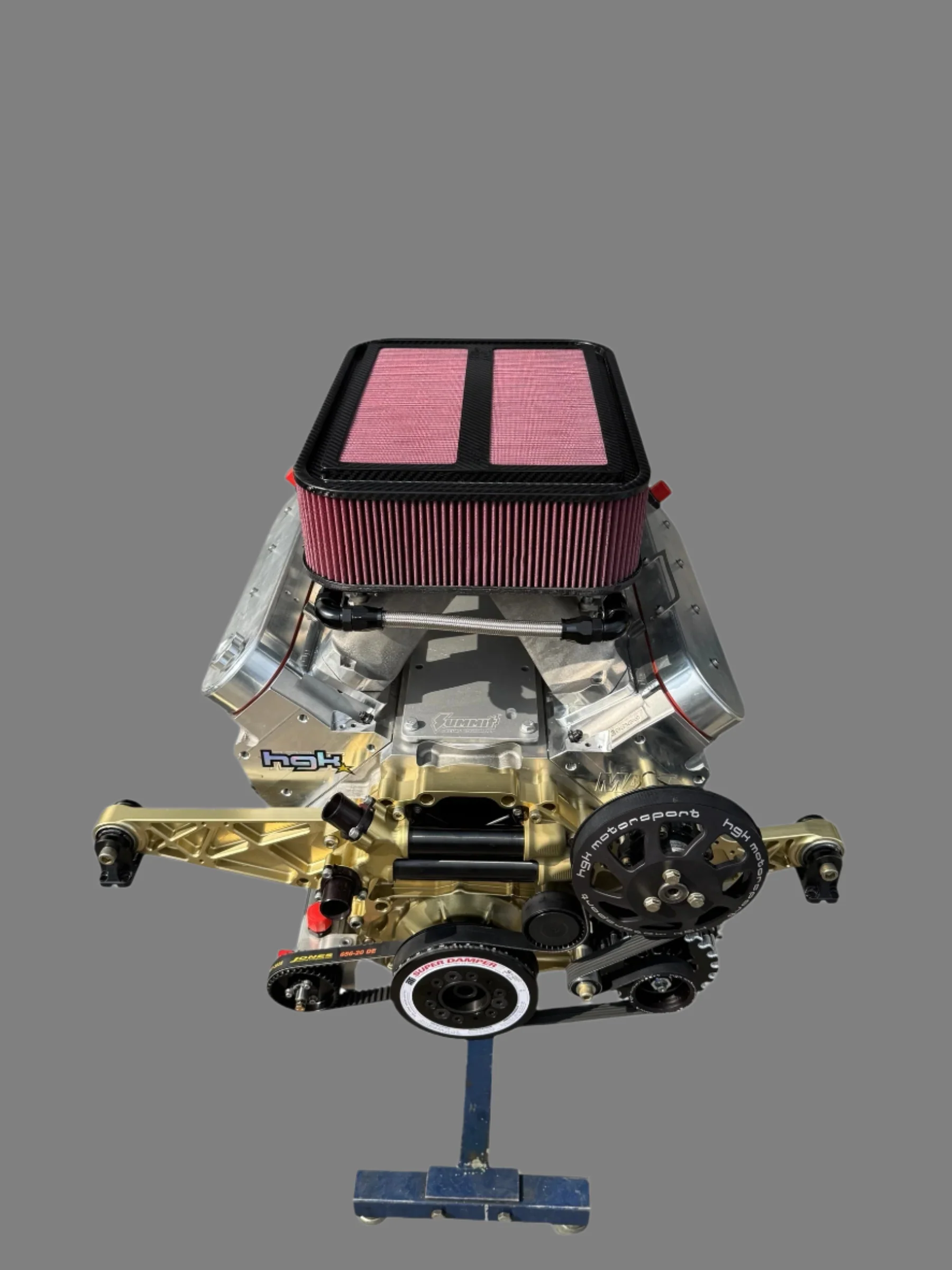

HGK-440 LS Based V8

HGK LS-440 V8 RACE ENGINE
